Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: chaoli
  • Model Number: CL-0615
  • Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance
  • Certification: CE, ROHS
  • Type: Micro Motor
  • Torque: 18gf.cm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Drip-proof
  • Speed(RPM): 64000r/min
  • Continuous Current(A): 85mA
  • Output Power: 0.5/2W
  • Voltage(V): 3.7V
  • Efficiency: IE 3

Packaging & Delivery

Packaging Details Polyfoam or carton seperator inside, strong export carton box outside, with pallet.
Delivery Time Shipped in 20 days after payment
Product Description

1.This product

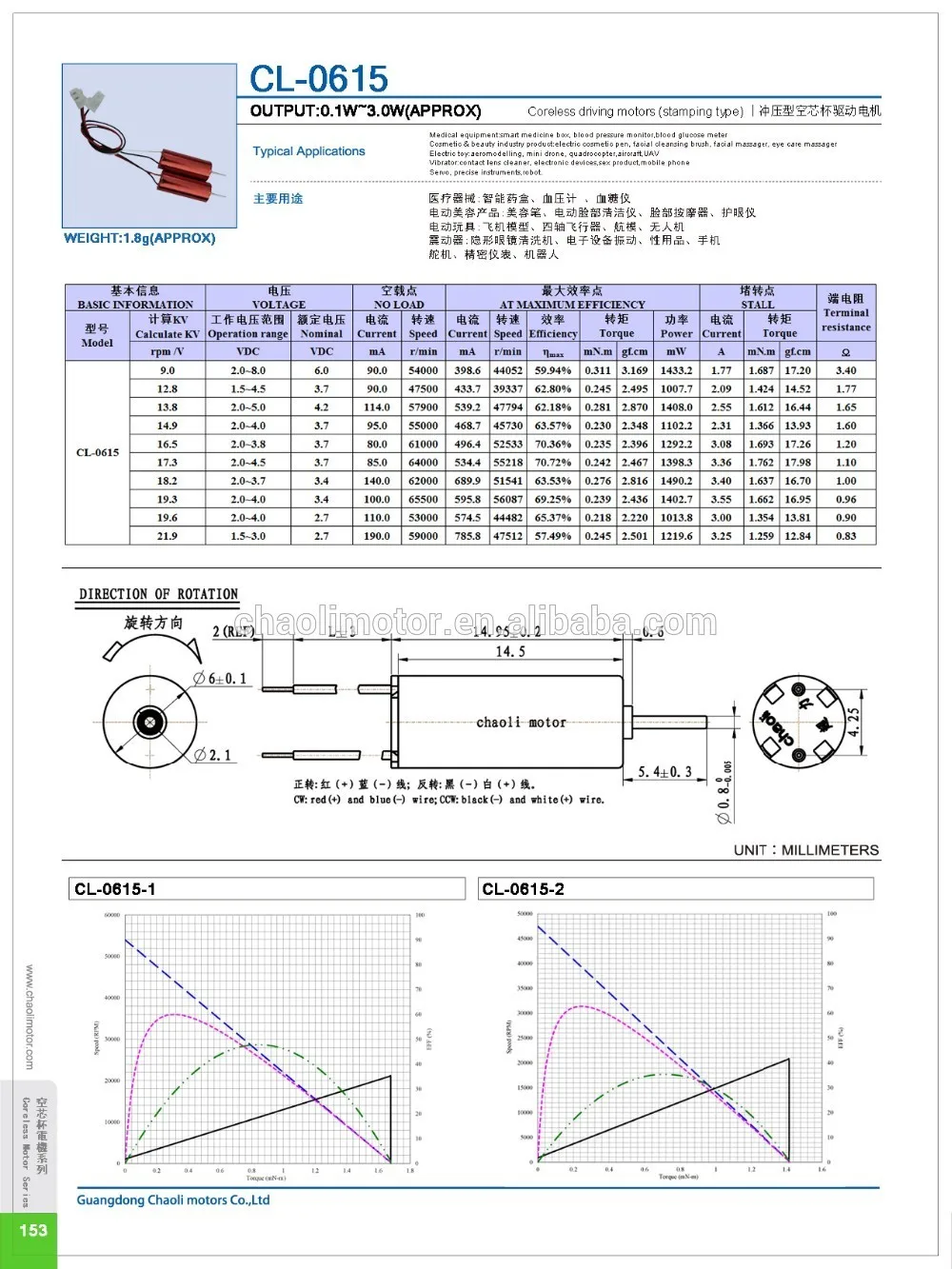

Below are the specifications and structures of the product, for more information, please feel free to contact us.

Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

Special features/structure:

Motor type: PMDC coreless motor

Motor housing (D*F* L): Φ6*15mm

Housing material: SECD-O

Shaft (diameter): 0.8mm SUS304 steel (nickel coating)

Way of commutation: precious metal-brush

Structure: 2-pole stator and hollow cup type

Magnet type: Nd-Fe-B

Rotation: CW/CCW and reversible

Weight: 1.8g (approximate)

Options:

Length and shape for the extended shaft

EMI/EMC suppression

Gear, eccentric wheel or reducer increased

Magnet type

Wire diameter and turn number



Key parameters/performance

Rated voltage: 3.4V DC

At no load:

Speed: 65500rpm

Current: 100mA

At stall:

Current: 3.55A (maximum)

Torque: 17.0gf.cm

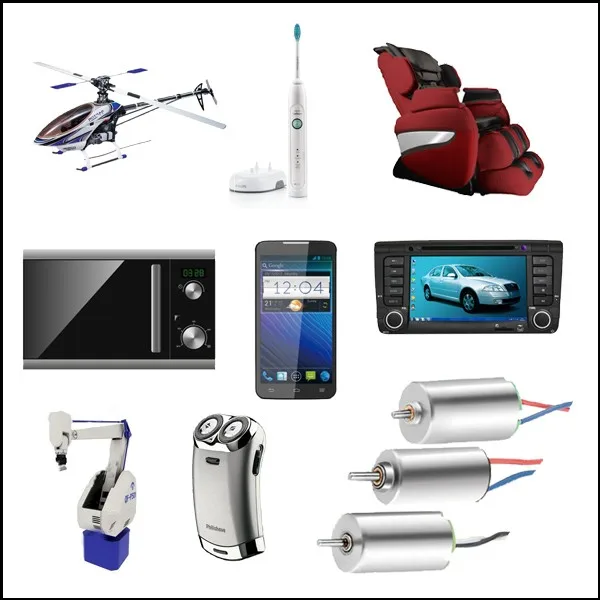

This product is widely used in:

Medical equipment: smart medicine box, blood pressure monitor,blood glucose meter

Cosmetic & beauty industry product: electric cosmetic pen, facial cleansing brush, facial massager, eye care massager.

Electric toy: aeromodelling, mini drone, quadrocopter,aircraft,UAV

Vibrator: contact lens cleaner, electronic devices,sex product,mobile phone

Servo, precise instruments,robot.

2.Our products

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.

Company information

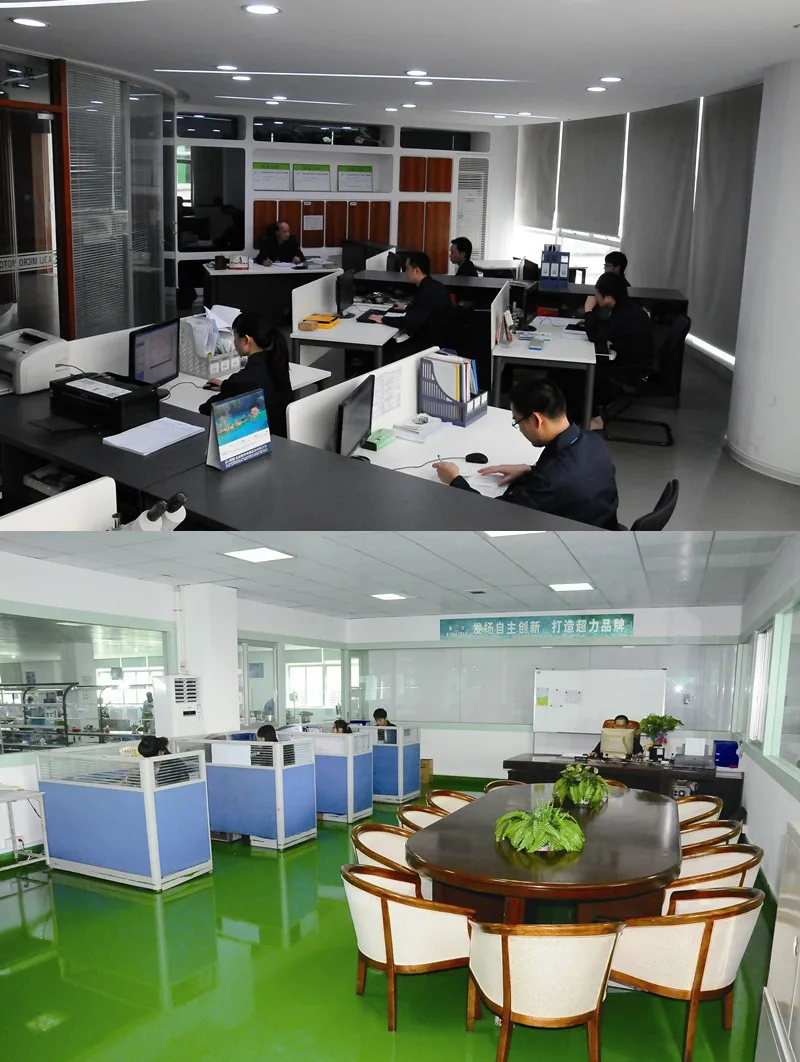

1.Company Profile

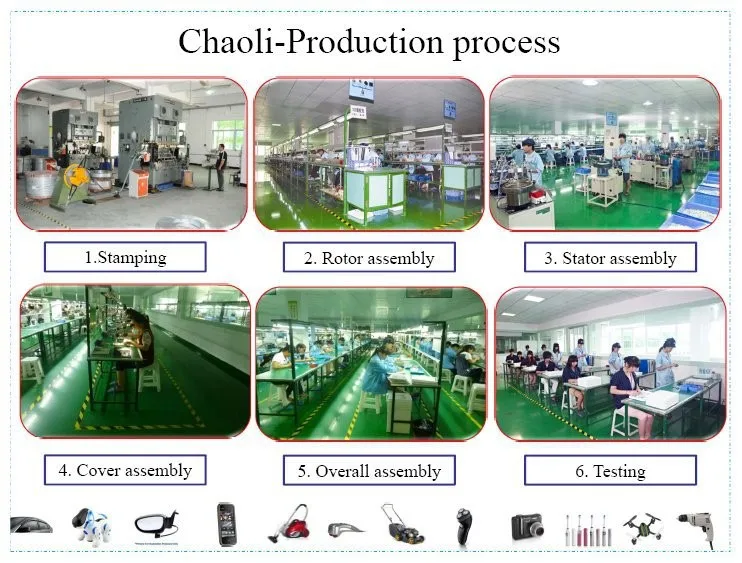

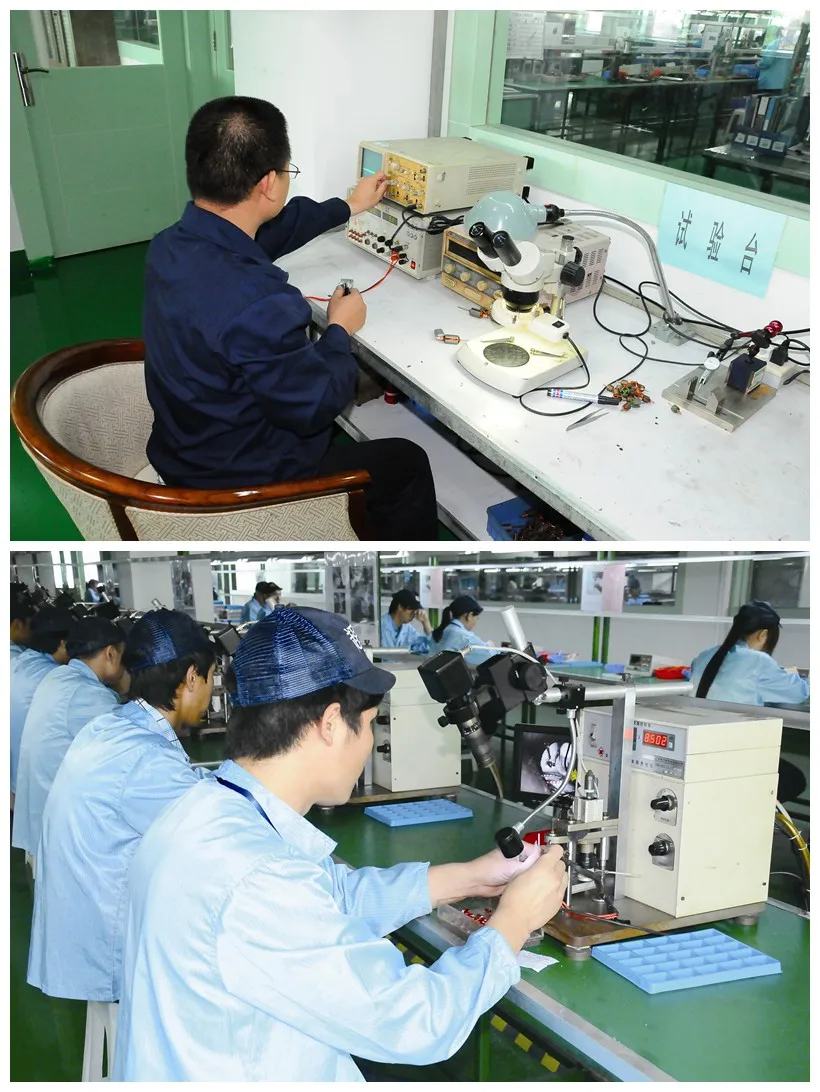

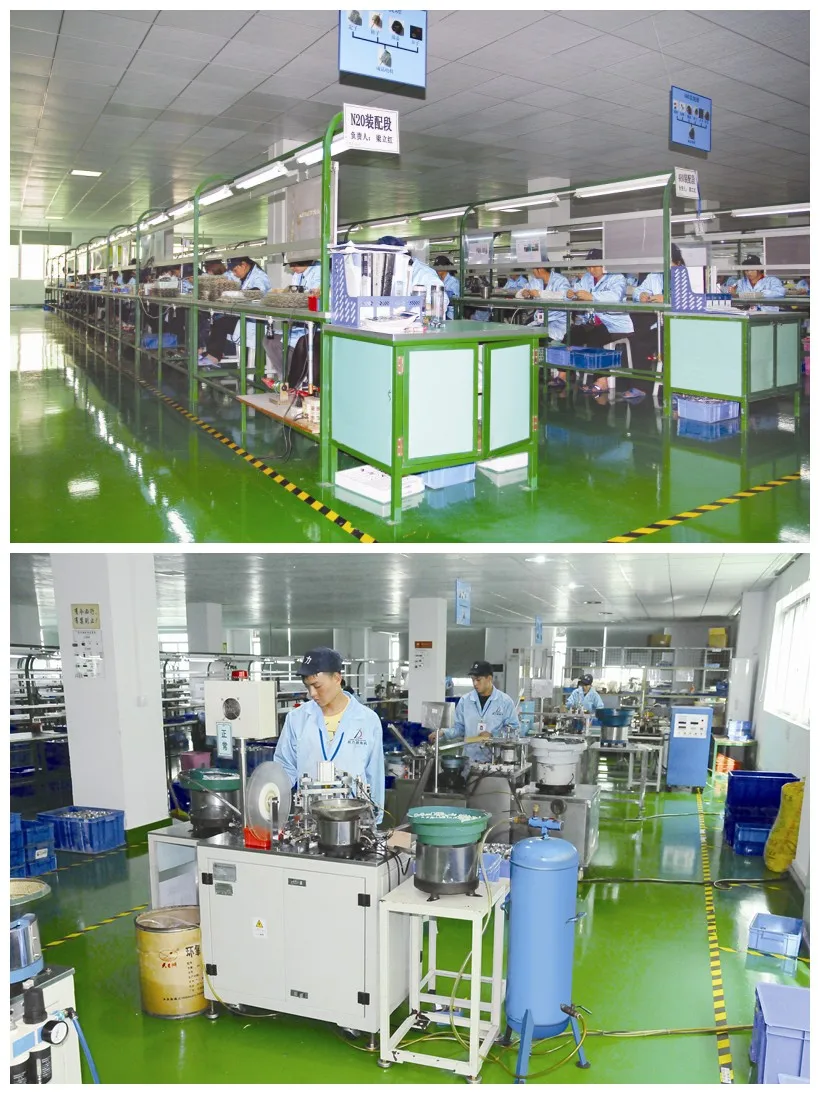

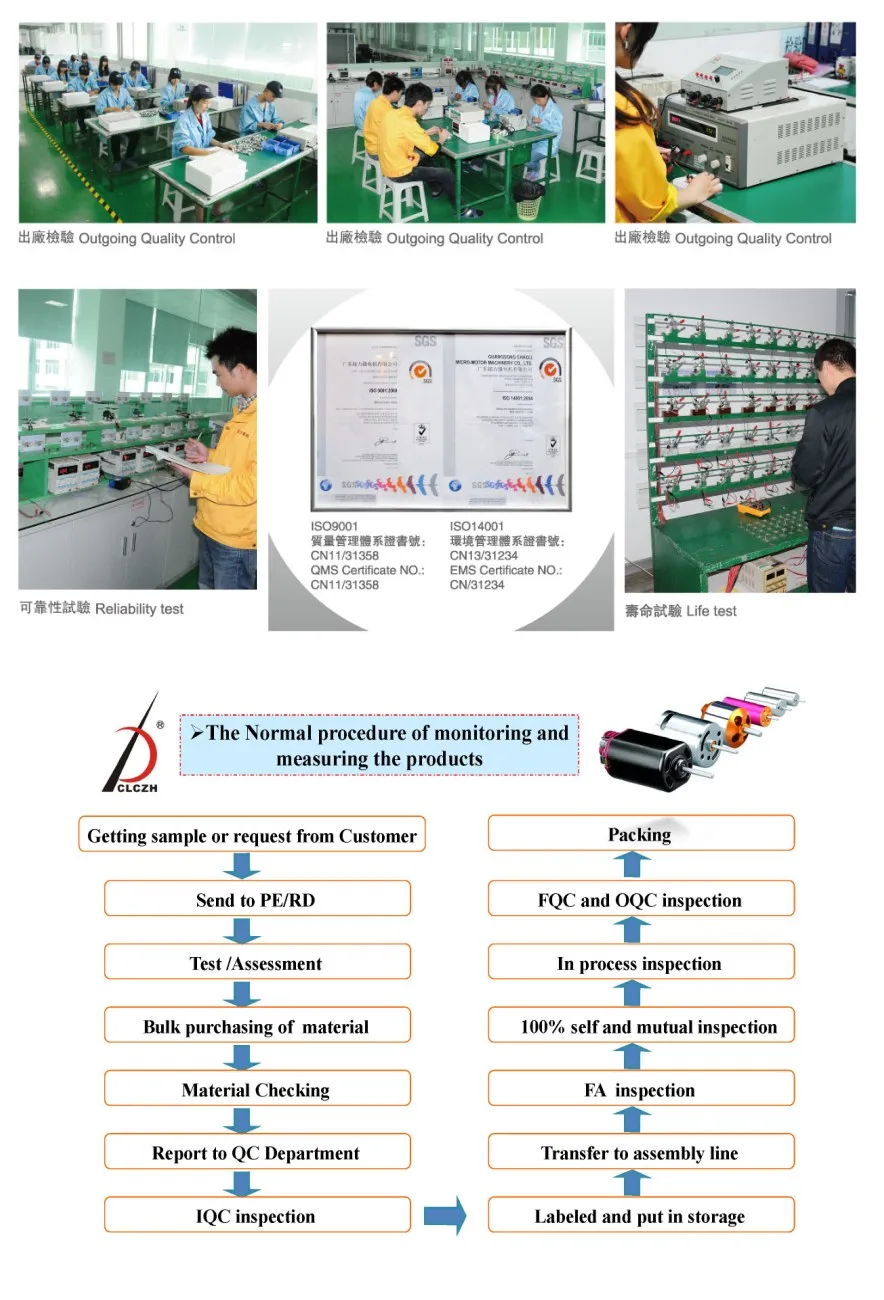

2. R&D/QA/production/Trading



3. Qualification and Honor

1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.



2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.



3) Our company possesses over 20 patent licensing.



4) “CLCZH” Trademark is rated as famous brand of Guangdong province.



5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.
