Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: chaoli
  • Model Number: CL-0617
  • Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance, robot,UAV, mini drone, quadrocopter,aircraft
  • Certification: CE, ROHS
  • Type: Micro Motor
  • Torque: 16.4gf.cm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Drip-proof
  • Speed(RPM): 62000r/min
  • Continuous Current(A): 120mA
  • Output Power: 0.1~3.0W
  • Voltage(V): 3.0
  • Efficiency: IE 3
  • KV: 9~23

Packaging & Delivery

Packaging Details Polyfoam or carton seperator inside, strong export carton box outside, with pallet.
Delivery Time Shipped in 20 days after payment


Product Description


1.This product

  • Below are the specifications and structures of the product, for more information, please feel free to contact us.
  • Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

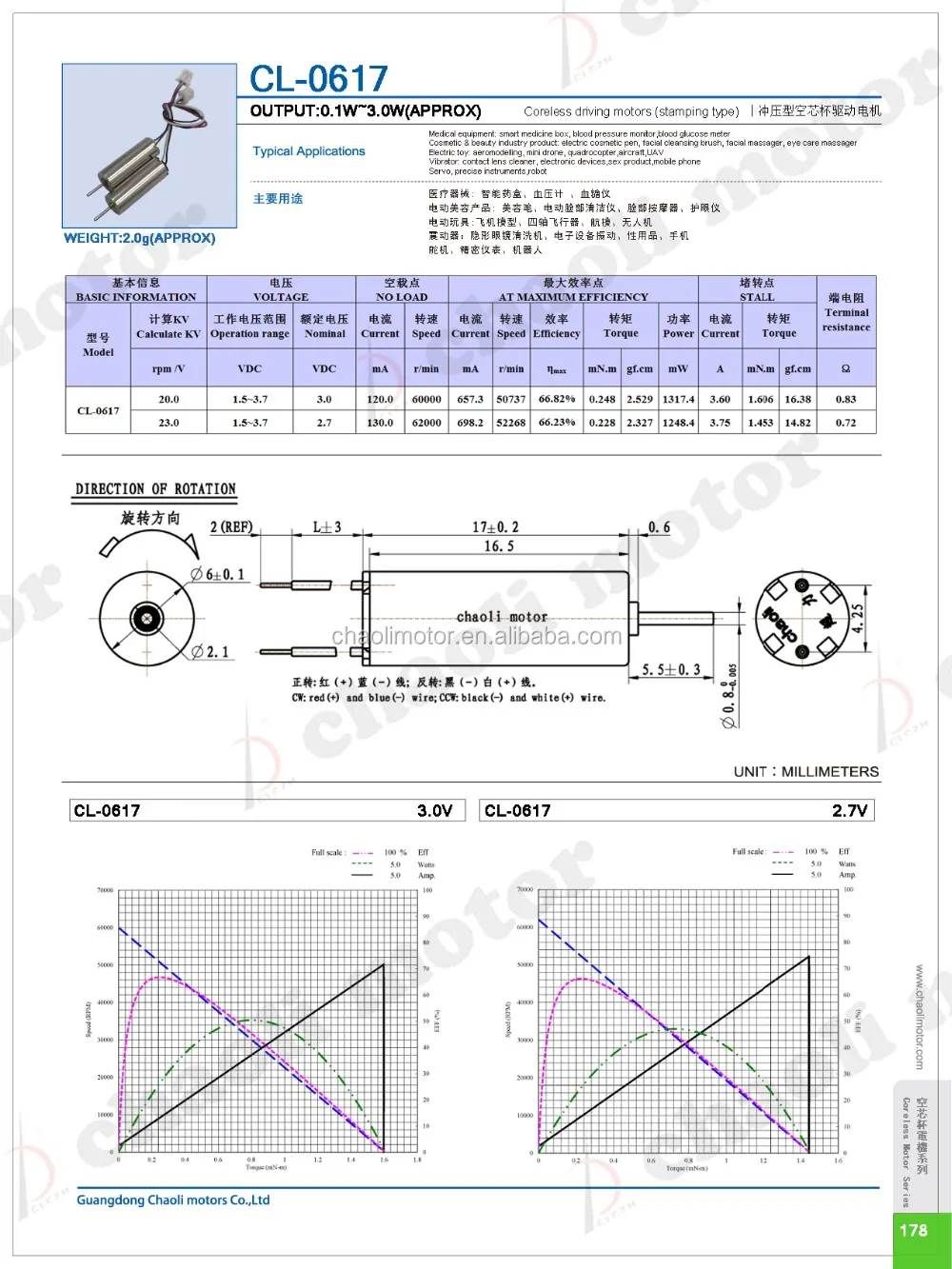

Special features/structure:
Motor type: PMDC coreless motor
Motor housing (D*F* L): Φ6*17mm
Housing material: SECD-O
Shaft (diameter): 0.8mm SUS304 steel (nickel coating)
Way of commutation: precious metal-brush
Structure: 2-pole stator and hollow cup type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 2.0g (approximate)
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer increased
Magnet type

Micro JST-1.25 plug
Wire diameter and turn number
Key parameters/performance
Rated voltage: 3.0V DC
At no load:
Speed: 62000rpm
Current: 120mA
At stall:
Current: 3.6A (maximum)
Torque: 16.4gf.cm

This product is widely used in:

Medical equipment: smart medicine box, blood pressure monitor,blood glucose meter
Cosmetic & beauty industry product: electric cosmetic pen, facial cleansing brush, facial massager, eye care massager
Electric toy: aeromodelling, mini drone, quadrocopter,aircraft,UAV
Vibrator: contact lens cleaner, electronic devices,sex product,mobile phone
Servo, precise instruments,robot

Provide high quality, Bring honorable value.



2.Our products


Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.





Our advantages:

.Specialized manufacture

. Complete variety of product

.Volume production ability

.Reasonable pricing with high quality

.Short leading time, customized service



Please send us inquiries table including specifications


for the performance and structure requirements .
