Boat, Car, Electric Bicycle, Fan, Home Appliance, FPV, mini drone, UAV,quadcopter, servo
Packaging & Delivery
Polyfoam or carton seperator inside, strong export carton box outside, with pallet.
Shipped in 20 days after payment
Below are the specifications and structures of the product, for more information, please feel free to contact us.
Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

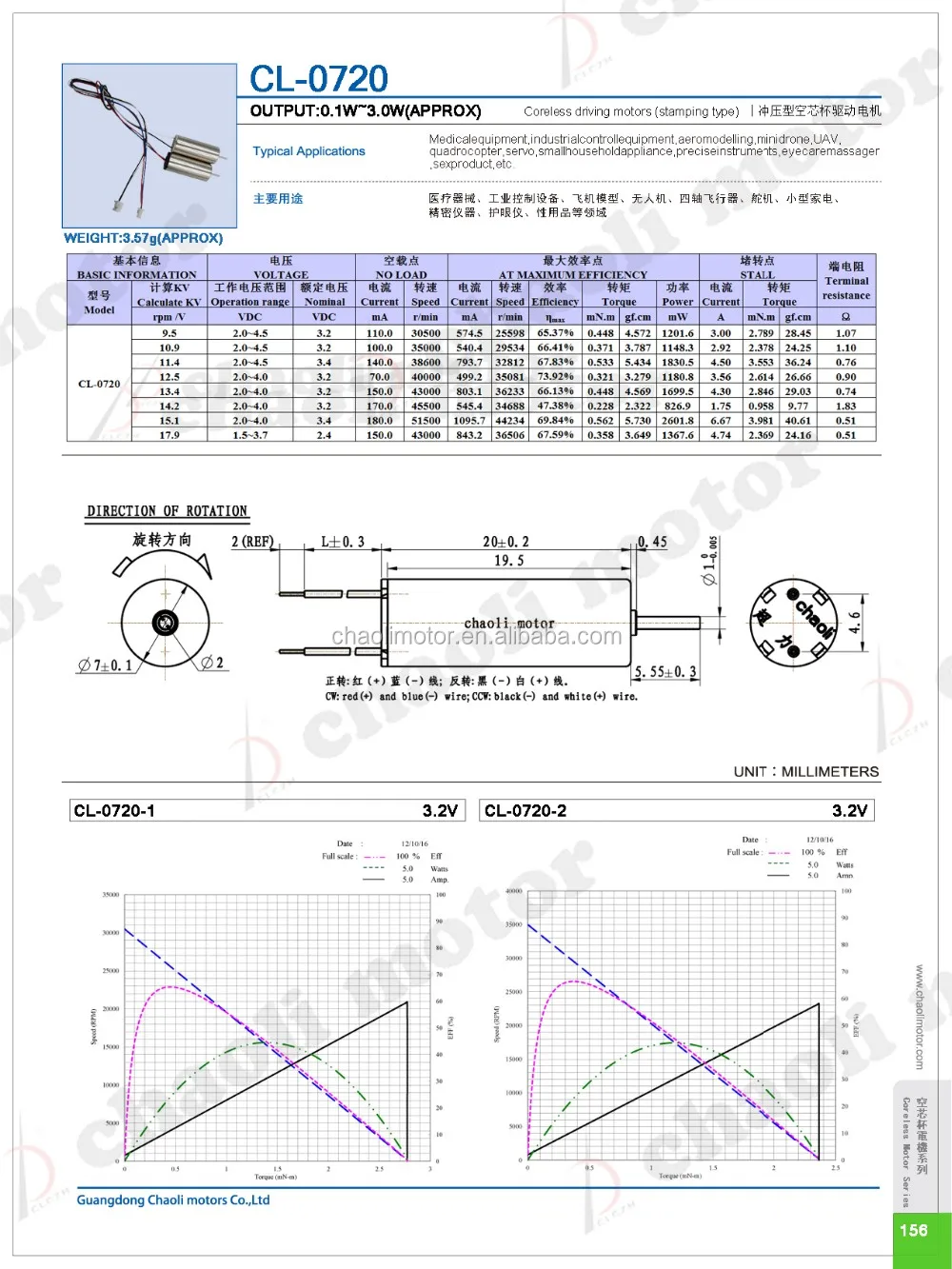

Special features/structure: Motor type: PMDC coreless motor Motor housing (D*F* L): Φ7*20mm Housing material: SECD-O Shaft (diameter): 1.0mm SUS304 steel (nickel coating) Way of commutation: precious metal-brush Structure: 2-pole stator and hollow cup type Magnet type: Nd-Fe-B Rotation: CW/CCW and reversible Weight: 3.57g (approximate) Options: Length and shape for the extended shaft EMI/EMC suppression Gear, eccentric wheel or reducer increased Magnet type
Micro JST-1.25 plug Wire diameter and turn number Key parameters/performance Rated voltage: 2.4V DC At no load: Speed: 43000rpm Current: 150mA At stall: Current: 4.74A (maximum) Torque: 24.16gf.cm
This product is widely used in:
Medical equipment, industrial controll equipment,aeromodelling, mini drone, UAV,quadrocopter, servo, small householdappliance, precise instruments, eye care massager, sex product
Provide high quality, Bring honorable value.
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
.Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
for the performance and structure requirements .
Beautifulironment,Harmonious surrWelcome to visit our company.
1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.
2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2013.
3) Our company possesses over 30 patent licensing.
4) “CLCZH” Trademark is rated as famous brand of Guangdong province.
5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.
Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.
4. Contact us
.Telephone:86 754 86381288
.FAX:86 754 86381168
.Address:Laimei Industrial Park, Shantou 515800, Guangdong, China
