China branded micro DC motor with high quality and reasonable price

FOB Reference Price:Get Latest Price
US $0.1-100 / Unit | 500 Unit/Units (Min. Order)
Supply Ability:
5000000 Piece/Pieces per Month
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Boat, Car, Electric Bicycle, Fan, Home Appliance, Other
Micro Motor
Permanent Magnet
Protect Feature:
Totally Enclosed
Continuous Current(A):
Output Power:
IE 3
Packaging & Delivery
Packaging Details
Polyfoam or carton seperator inside, strong export carton box outside, with pallet.
Delivery Time
Shipped in 20 days after payment


Product Description

 1.This product

  • Below are the specifications and structures of the product, for more information, please feel free to contact us.
  • Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

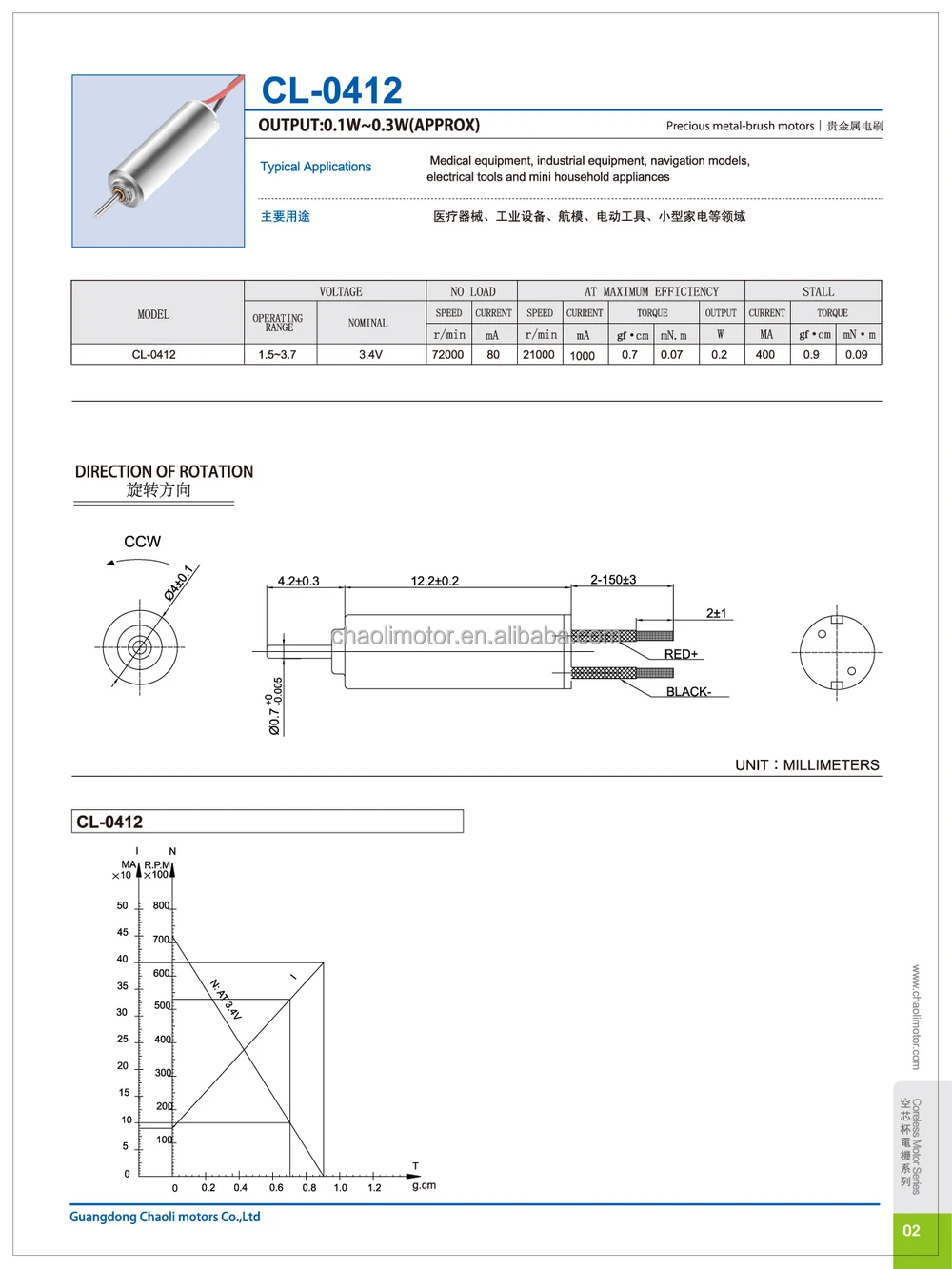

Special features/structure:
Motor type: PMDC coreless motor
Motor housing (D*F* L): Φ4*12mm
Housing material: SECD-O
Shaft (diameter): 0.7mm SUS304 steel (nickel coating)
Way of commutation: precious metal-brush
Structure: 2-pole stator and hollow cup type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 0.7g (approx)
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer increased
Magnet type
Wire diameter and turn number
Key parameters/performance
Rated voltage: 3.4V DC
At no load:
Speed: 72,000rpm
Current: 80mA
At maximum efficiency:
Speed: 21,000rpm
Current: 100mA
Output: 0.2W
At stall:
Current: 0.4A (maximum)

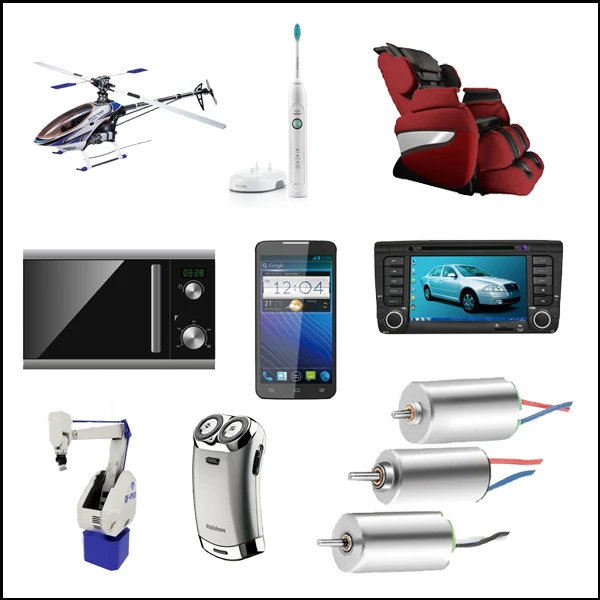

This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.


Provide high quality, Bring honorable value.



2.Our products


Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.





Our advantages:

.Specialized manufacture

. Complete variety of product

.Volume production ability

.Reasonable pricing with high quality

.Short leading time, customized service



Please send us inquiries table including specifications


for the performance and structure requirements .



Company Information



 1. Company Profile

Beautiful Environment,Harmonious surrounding,

Welcome to visit our company.

.Outside view of our factory




. Our production line




.Our offices





.Our  staffs









.Our  showroom




2.  R&D/QA/production/Trading


Market-oriented,Technology focus,Strict Quality Control.

. Our technology



. Our  Quality assurance



.  Our production



. During the exhibition


3.   Qualification and Honor


1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.


2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.


3) Our company possesses over 20 patent licensing.


4) “CLCZH” Trademark is rated as famous brand of Guangdong province.


5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.





Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.


4.  Contact us

.Contacts:Henry Cai


.Telephone:86 754 86381288


.FAX:86 754 86381168


.TradeManager: chaolimotor


.SKYPE: HenryCaizhangjin


.Address:Laimei Industrial Park, Shantou 515800, Guangdong, China


.Zip Code:515800
