Polyfoam or carton seperator inside, strong export carton box outside, with pallet.

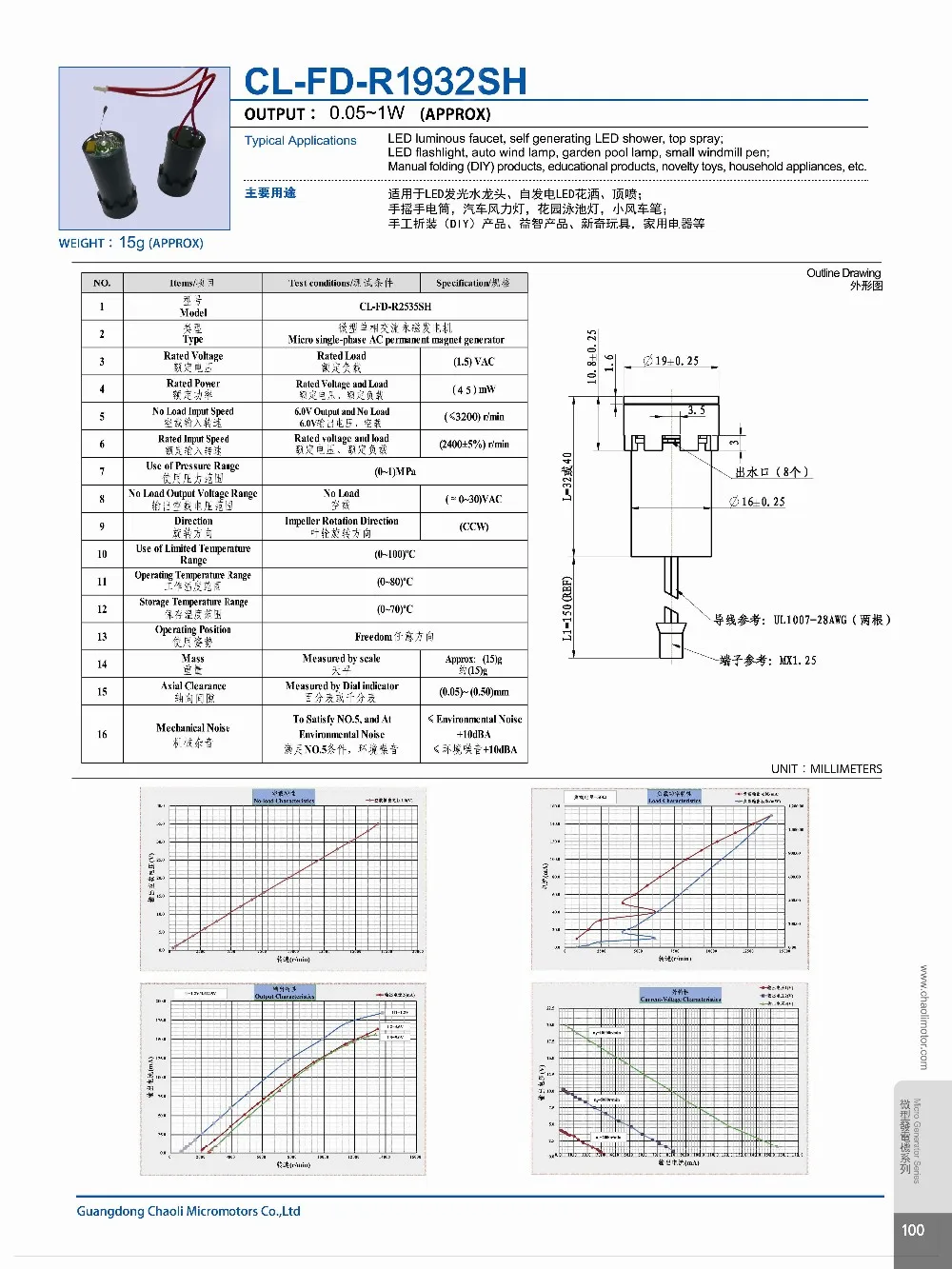

Below are the specifications and structures of the product, for more information, please feel free to contact us.
Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.
Generator type: micro single-phase AC permanent magnet generator
Generator housing (D*F*L): Φ19*32-40mm
Housing material: PBT
Shaft (diameter): 1.5mm SUS130M (nickel coating)
Way of commutation: no commutator rectifier
Structure: seal type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 15g (approximate)
LED, PCBA, temperature control
Wire diameter and turn number
Key parameters/ performance
Rated voltage (rated load): 1.5V AC
Rated power (rated load): 45mW
Rated input speed (rated voltage and load): (2400±5%) r/min
Use of pressure range: (0-1)MPa
No load output voltage range: (≈0-30)VAC
Use of limited temperature range: (0-100)ºC
Axial clearance: (0.05)- (0.50)mm
Mechanical noise: ≤environmental-friendly +10dBA
Operating position: Freedom
This product is widely used in: LED luminous faucet, self-generating LED shower, top spray, LED flashlight, auto wind lamp, garden pool lamp, small windmill pen; manual folding (DIY) products, educational products, novelty toys, household appliances, and more.
Provide high quality, Bring honorable value.
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
.Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.
2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.
3) Our company possesses over 20 patent licensing.
4) “CLCZH” Trademark is rated as famous brand of Guangdong province.
5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.
Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.
4. Contact us
.Telephone:86 754 86381288
.FAX:86 754 86381168
.Address:Laimei Industrial Park, Shantou 515800, Guangdong, China
